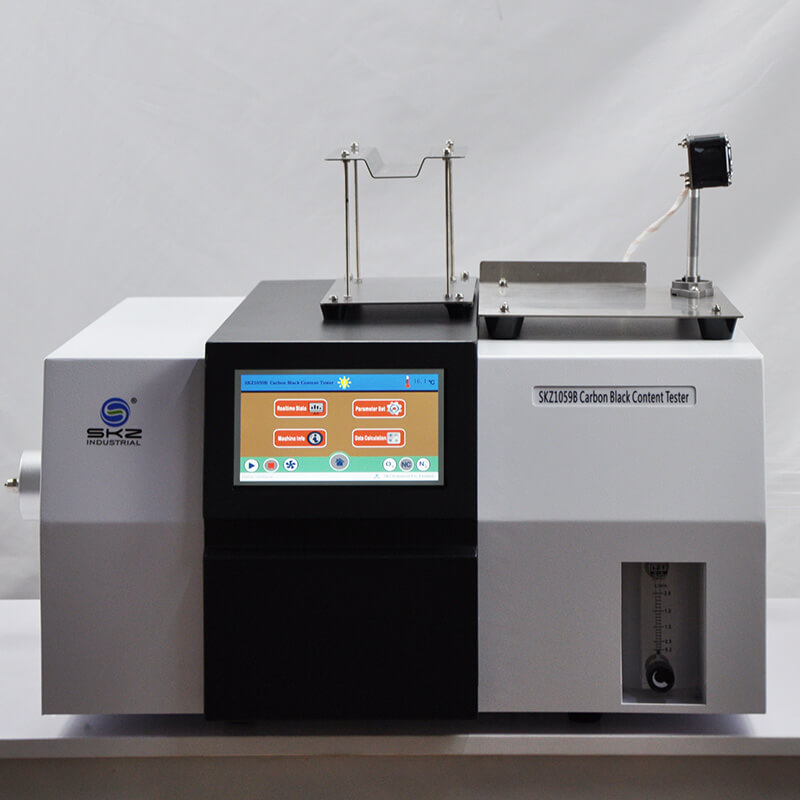

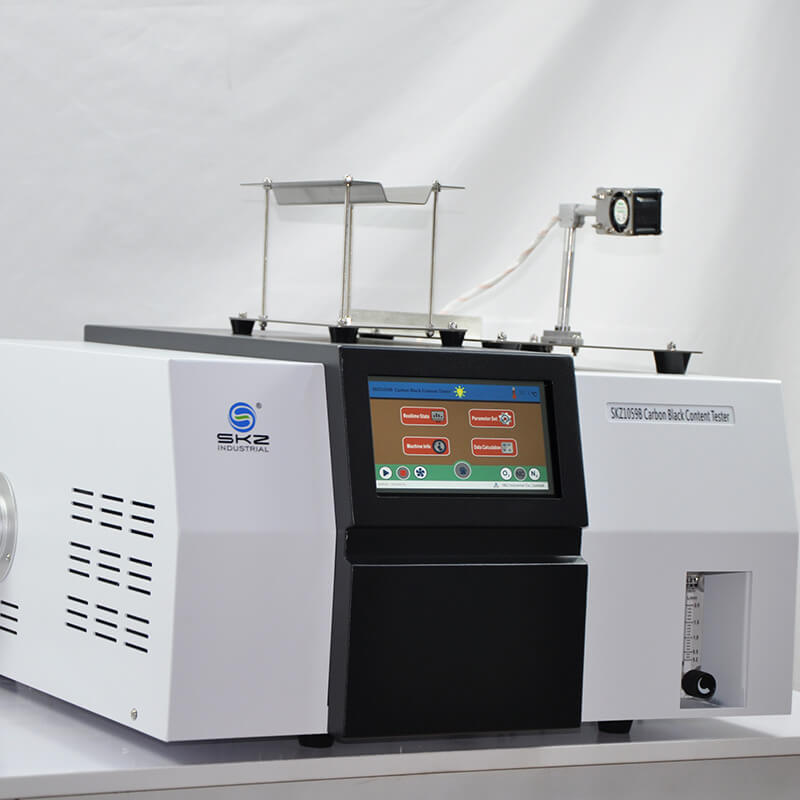

Automatic Carbon Black Content Tester carbon black content test apparatus for plastics｜SKZ1059B

Automatic Carbon Black Content Tester carbon black content test apparatus for plastics｜SKZ1059B

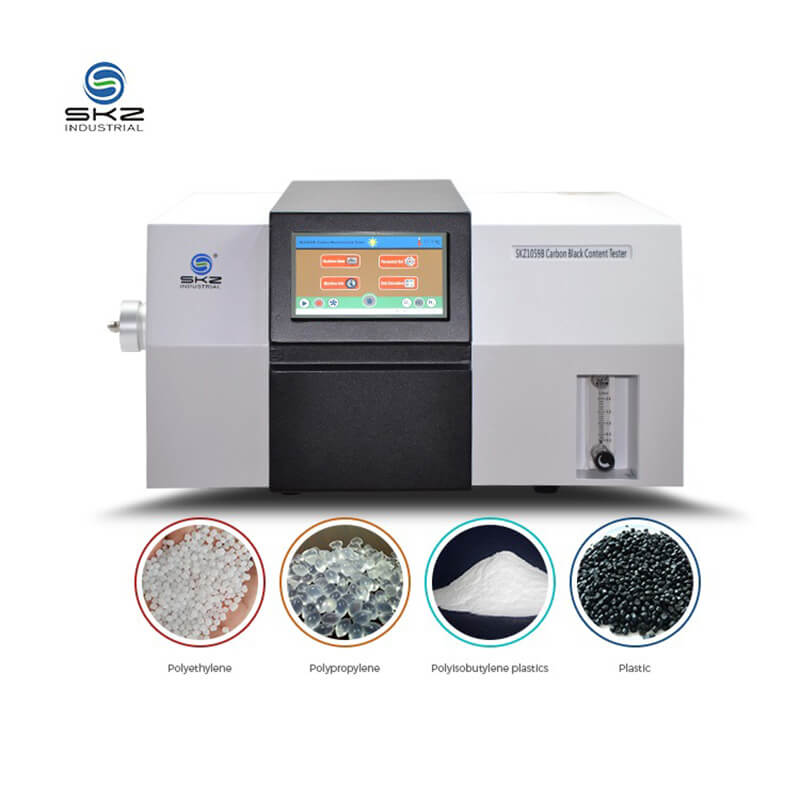

High-precision automatic carbon black content tester applies to polyethylene, polypropylene, and polyisobutylene plastics in the determination of the content of carbon.

Product Description

Technical Parameters
Display	7-inch capacitive touch screen display	Temperature accuracy	± 0.5 ℃
Tube size	Ф45 × 450mm	Sensitivity	0.1℃
Heating element	high temperature nickel-chromium wire	Heating rate	1℃ ~ 50℃ / min
Heating area length	300mm	Power	≤ 1KW
Temperature area length	200mm	Working voltage	AC220V / 50HZ / 60HZ
Operating temperature	≤ 1100 ℃	Atmosphere	two paths
The maximum temperature	1200 ℃	Atmosphere switch	fully automatic
Temperature control mode	50 programmable control

Packing list
Name	Model	Quantity
Host machine	SKZ1059B	1 set
Furnace		1 set
Burning boat		10
Power Cord		1
10A fuse		5
Sensor		1
Forceps		1
Hose	1 m, 3 m	Each one
stopper and glass tube		2 sets

Standard

ISO 6964: Determination for the carbon black content of polyethylene pipes and fittings by calcination and pyrolysis.

ASTM D1603: Test Method for Carbon Black Content in Olefin Plastics.

IEC 60811-4-1: Common test methods for insulating and sheathing materials of electric and optical cables—Part 41:Methods specific to polyethylene and polypropylene compounds—Resistance to environmental stress cracking—Measurement of the melt flow index—Carbon black.

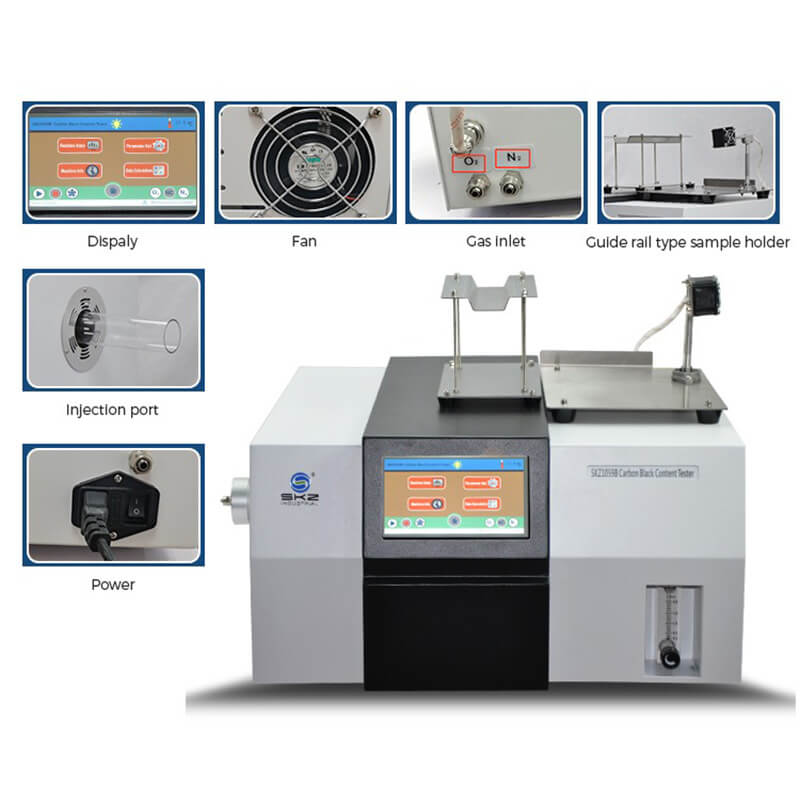

SKZ1059B Product Advantages

Simple Operation

During the test process, the samples were taken and released with a simple guide rail. The guide rails were used to pull out the samples directly. No need to open the sealing valve, without using other sampling tools to reduce errors and improve measurement accuracy.

Repeat Consistency

The injector for the sample combustion boat is marked, scaled, and bespoke to ensure that the same requirements are placed on the sample locations in a repetitive test, just as it is for each insertion into the furnace.

High Cooling Efficiency

During the test, the sample can be cooled internally and equipped with independent fan cooling to speed up the cooling and improve the cooling efficiency. Even if the sample temperature reaches 1000 ° C, the external enclosure temperature is always <50 ° C.

One-button Calculation

7-inch high-definition capacitive touch screen, Real-time display of temperature curve. 50 section temperature can be set, A key calculation of carbon black content.

High Precision

Sample combustion boat guide rail support, located in the center of the heating furnace core area to ensure uniform heat around the sample, the test accuracy is higher. Avoid the traditional combustion boat placed directly on the test tube, the drawbacks of uneven heating.

Double Wire Winding Heating

Avoid open-door furnace defects, using double-wire wound heating, heating more uniform, and anti-aging.

Smarter Operation

Atmosphere control, program switching, but also manually through the touch screen to switch to make the operation more intelligent and more convenient.

Automatic Cleaning

Exhaust end can be equipped with automatic cleaning bottle, cleaning bottle users can replace, but also through the instrument window to observe the gas reaction.

SKZ1059B OPERATION PROCESS

①Open the instrument enter the parameter setting interface, set the temperature parameters and click Save. ②Record the weight of the sample, place the burning boat on the sample rack and push it with the sample hook into the middle of the quartz pipe. ③Set temperature, gas, time, etc. Click on the run key on the screen and start heating up. ④When finish,enter the recorded quality. Calculate the carbon black content and ash content. ⑤After the experiment, the external fan can be connected for rapid cooling.

Carbon Black Content Tester Application Scenarios

Optical Cable Insulation
Polypropylene
Cable
Rubber
Polythene
Polybutene Plastics
Sheath Material
