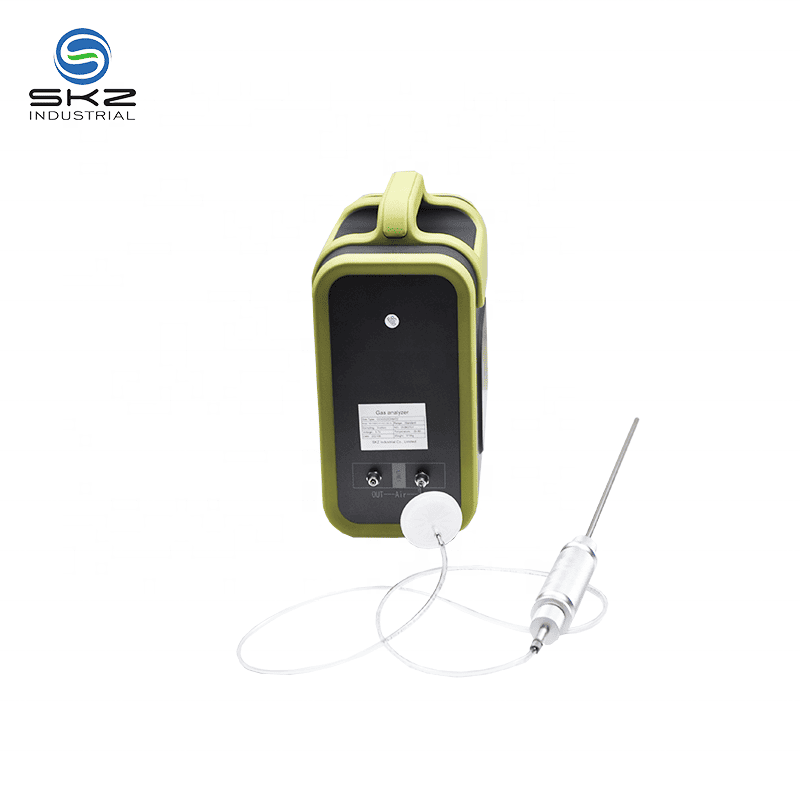

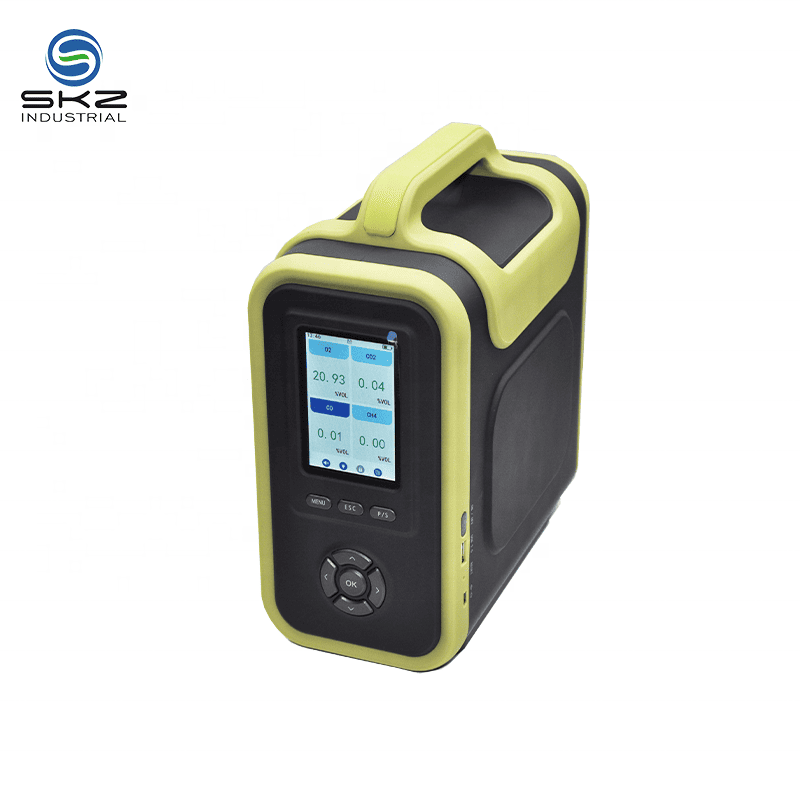

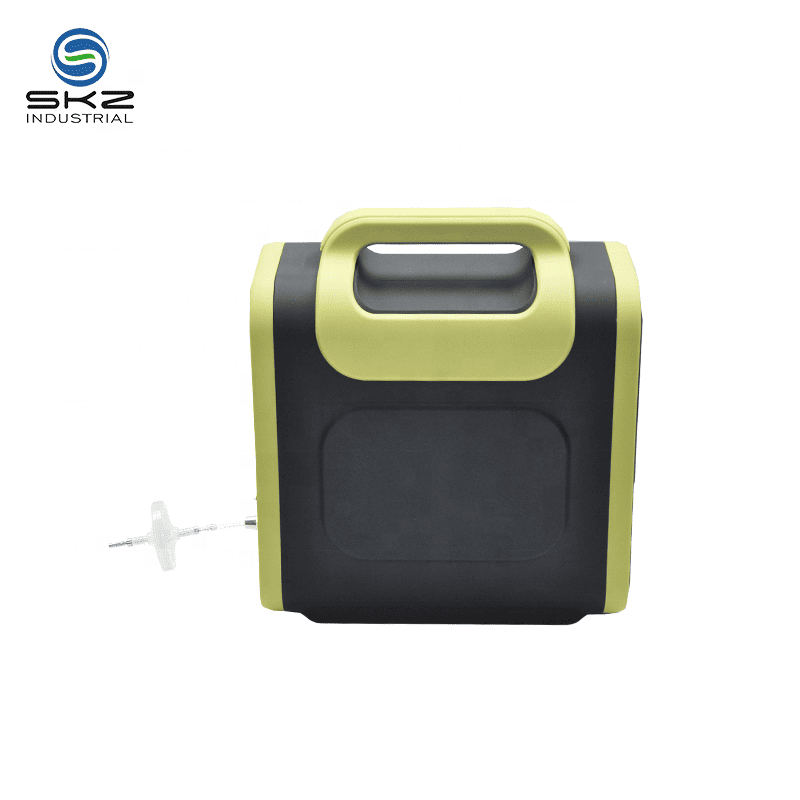

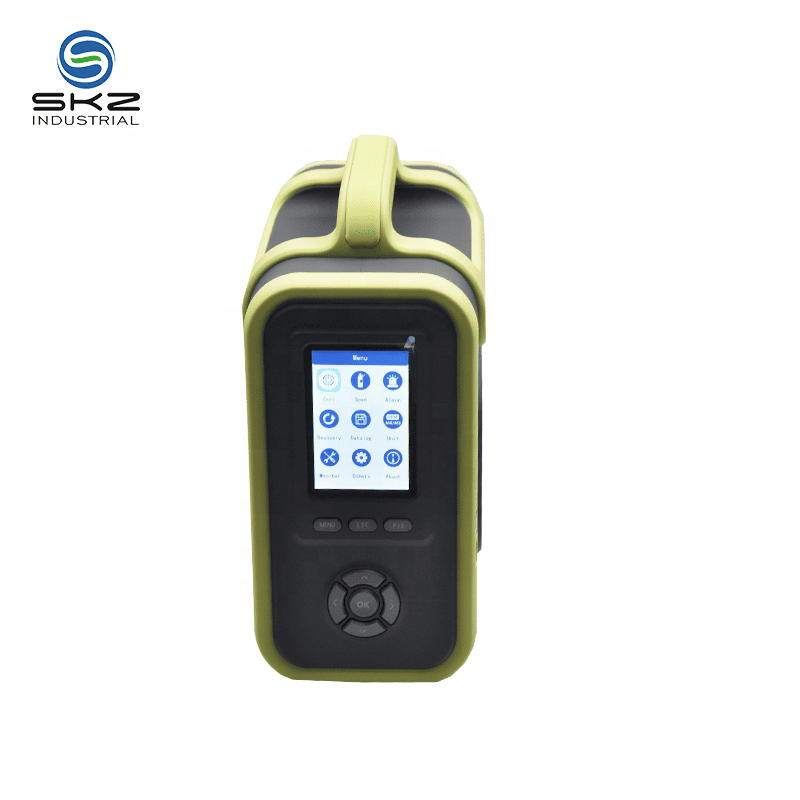

3.5-inch Color Dsplay Portable Multi Gas Analyzer Gas Leak Detector with Smart Sensor | SKZ1050D

The SKZ1050D portable multi gas analyzer equipped with a 3.5-inch color display and smart sensors, is designed for efficient gas leak detection. The device is able to detect multiple gases simultaneously, ensuring safety and environmental protection. Its lightweight design makes it easy to carry and suitable for industrial, laboratory and home use.

Product Description
Gas Detected Single or multiple as requested
Detection principle Depends on the gas type and measure range
Sampling method Built-in stable flow pump
Modular structure 3 detection modules, each module can be selected to detect up to 6 kinds of gases
Concentration unit ppm, mg/m3, %VOL, %LEL, can be switched by one button
Display 3.5-inch color display, resolution 320*480
Display mode Multi-channel data mode, multi-curve
mode, multi-channel data + multi-curve mode, single channel + single curve mode
Temperature and humidity detection range Temperature: -20 °C - 50 °C, resolution: 0.1 °C(optional)
humidity: 0-99% RH, resolution: 1% RH * (optional)
Data storage Standard 8G SD card storage function (more capacity can be customized)
Communication and data download Output RS232, RS485 signal; with PC software to download
Wireless transmission Bluetooth (with printer), ZigBee, built-in DTU wireless module
(optional)
Print Built-in printer or external Bluetooth printer (optional)
Print content Text, graphics, 1D code, 2D code, curve
Operating language Chinese and English
Battery capacity 3.7VDC, 10000mA rechargeable polymer battery
Measure Range As requested

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

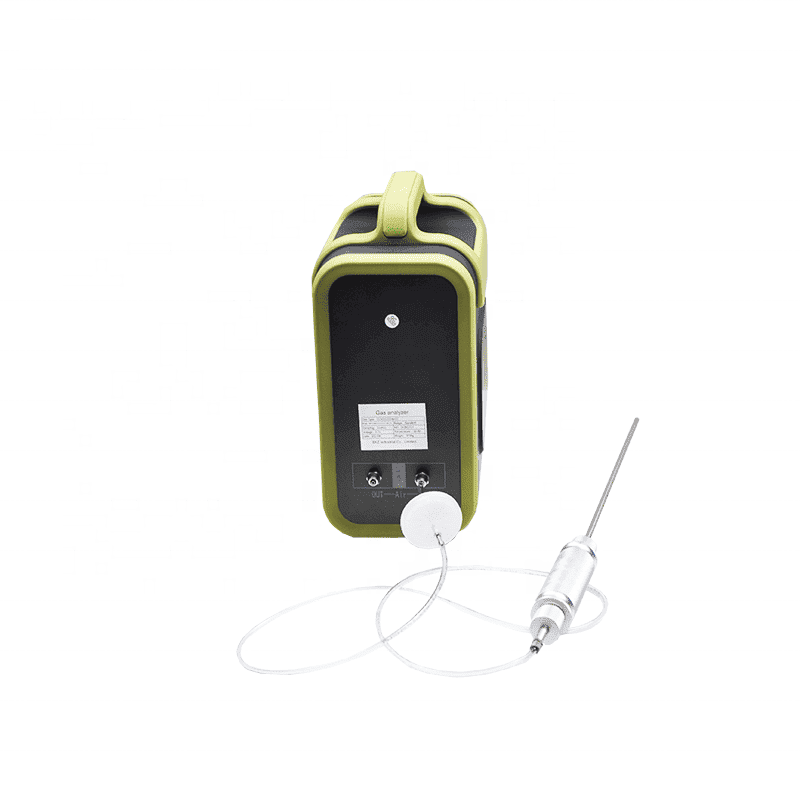

Features of SKZ1050D Portable Multi Gas Analyzer

Modular internal structure

Modular internal structure

1). Adopting a modular internal structure and obtaining a structural design patent 2). It is divided into 3 detection modules, each of which can detect up to 6 gases. 3). It can built-in maximum 18 gas detection 4). The modules are independent of each other and separate the air intake, which can effectively avoid the cross interference of gas to other sensors, and the detection is more accurate.
3.5 inch high-definition color screen

3.5 inch high-definition color screen

1). The outer casing is made of aviation wear-resistant material 2). Adopt 3.5-inch high-definition color screen, high resolution, wide viewing angle
Multiple display modes coexist

Multiple display modes coexist

Support gas concentration data display, gas concentration real-time curve display mode arbitrary switching
Features of SKZ1050D Portable Multi Gas Analyzer
Flexible, multi-pump system

Flexible, multi-pump system

The air supply system of up to three pumps can switch the pump arbitrarily, blocking the loss of the cross-gas to the relevant sensor and prolonging the service life of the sensor
High configuration control core

High configuration control core

The imported industrial grade sensor, large-size high-definition display, the control system performance is stronger, the operation is more humanized
Optional

Optional

1). Optional built-in thermal printer for mobile printing at any time 2). Optional equipped with a high temperature probe that can withstand temperatures up to 1100°C

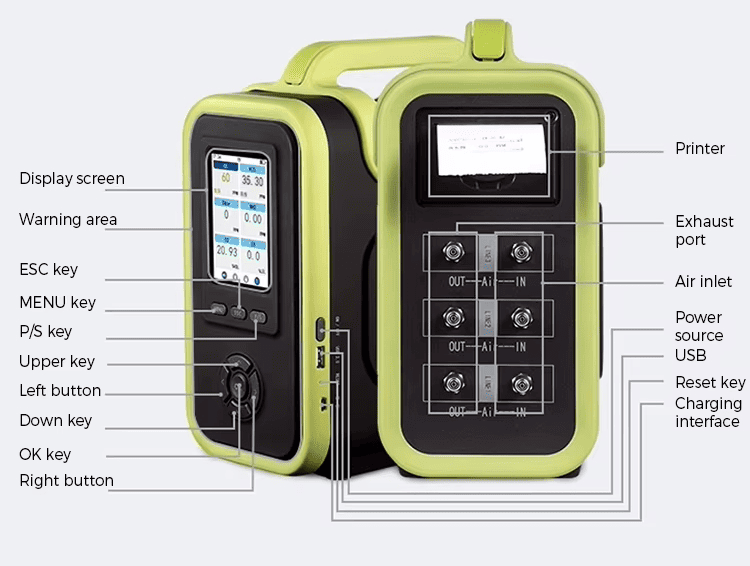

Structures of SKZ1050D Portable Gas Analyzer

Display screen、Warning area、ESC key、MENU keyP/s key、Upper key、Left button、Down key、OK key、Right button、Printer Exhaust port、Air inlet、Powersource USB、Reset key Charging interface
Get a Quote
Structures of SKZ1050D Portable Gas Analyzer

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000

SKZ1050D Portable Gas Analyzer

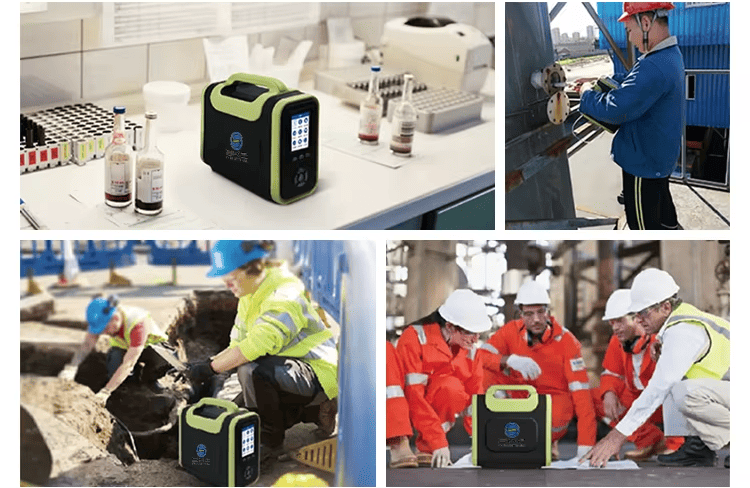

In What Scenarios Can Gas Leak Detectors Be Used?

The SKZ1050D gas leak detector is suitable for a variety of industries and application scenarios due to its portability and versatility, helping users monitor and analyze gas composition in real time to ensure safety and compliance.

  • Environmental monitoring
  • Industrial applications
  • Building and construction
  • Laboratory and research
  • Automotive and transportation
  • Medical field

Shipment

Shipment and Delivery

365-Day One-Stop Service

Shipment and Delivery

Alibaba's top certified supplier provides one-to-one logistics tracking reminder service.

 What about the transportation?
What about the transportation?

1000

Satisfied clients
Shipment and Delivery
  • Provide air, sea and shipping services according to customer needs

  • Provide fumigation-free plywood boxes or multi-layer cartons, wrapped with plastic film inside

  • Delivery within two weeks

  • Low minimum order quantity OEM

Satisfied clients
Satisfied clients

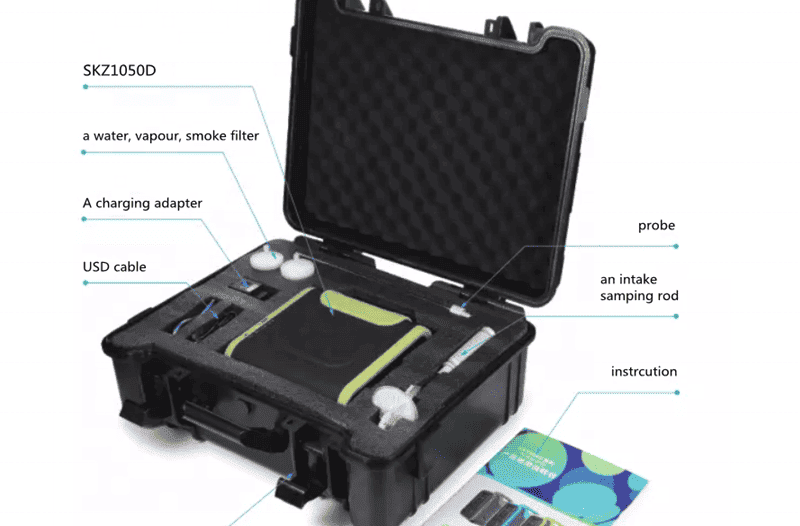

See How SKZ1050 Multi Gas Analyzer Work

SKZ1050D-CO CO2 NOx SO2 portable gas analyzer, designed for efficient multi-gas detection. It features one-key download, USB charging, and automatic Bluetooth connectivity for seamless operation and data management.

Usage Tutorial

Usage Tutorial

Operation Demonstration

Operation Demonstration
