Product Description

Temperature range	Actual maximum temperature 1150℃(SKZ1053A)
	Actual maximum temperature 1350℃(SKZ1053B)
	Actual maximum temperature 1600℃(SKZ1053C)
Temperature resolution	0.01℃
Temperature fluctuation	±0.01℃
Heating rate	0.1 ~ 100 ℃ / min
Temperature control mode	Rising, Constant temperature
Program control	Program setting multi-stage heating and constant temperature
Cooling time	15min (1000℃ ~ 100℃), Natural cooling
Balance measuring scope	1mg~3g , Can be expanded to 50g
Sensitivity	0.01mg
Constant temperature and time	0 ~ 300min (set arbitrarily)
Display	Liquid crystal display (LCD), English version
Atmosphere device	Built-in gas flow meter, includes switch two path gas and control flow volume
Software	Record TG curves automatically, Processing data and print
Data interface	USB interface
Power	AC220V 50Hz
Size	500400430mm

Product Usage

Thermo gravimetric analysis (TG, TGA) is to observe the change of sample quality with temperature or time in the process of heating and constant temperature, the purpose is to study the thermal stability and composition of the material.

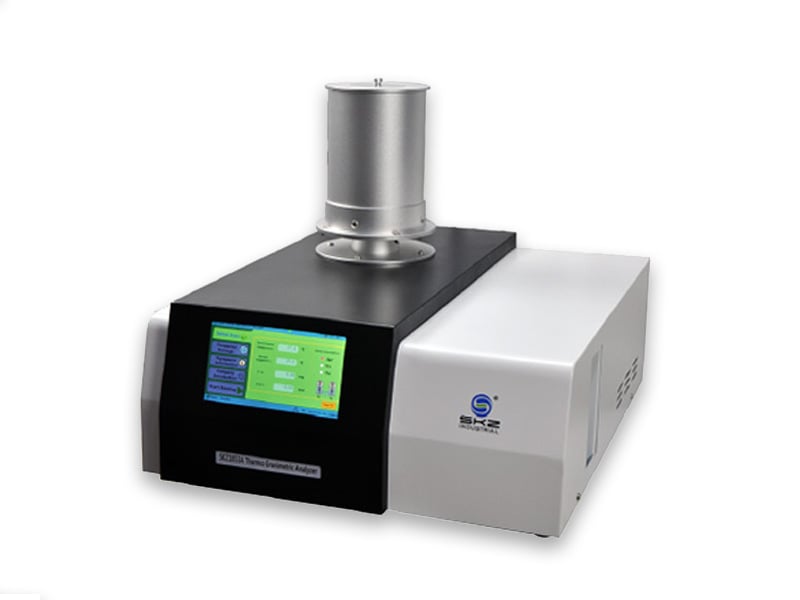

SKZ1053 Product Advantages

Ⅰ

The furnace body is heated by double-row winding of precious metal nickel-cadmium alloy wire, which reduces interference and is more resistant to high temperatures.

Ⅲ

The tray sensor is made of precious metal alloy wire, which has the advantages of high-temperature resistance, oxidation resistance, and corrosion resistance.

Ⅴ

The power supply and circulating heat dissipation part are separated from the main machine to reduce the influence of heat and vibration on the micro-thermal balance.

Ⅶ

Adopt a top-opening structure, easy to operate. It is difficult to move the furnace body up to place the sample, and it is easy to damage the sample rod.

Ⅸ

The host uses the heat insulation of the heating furnace body to the chassis and micro-thermal balance.

Ⅱ

Using an imported ARM processor, sampling speed, and processing speed is faster.

Ⅳ

Four-channel sampling AD collects TG signal and temperature T signal.

Ⅵ

Heating control, using PID algorithm, precise control. Multi-stage heating and constant temperature.

Ⅷ

The USB two-way communication is adopted between the software and the instrument to fully realize remote operation. The parameter setting of the instrument and the operation and stop of the instrument can be carried out through the computer software.

Ⅹ

7-inch full-color 24-bit touch screen, better man-machine interface. TG calibration can be achieved on the touchscreen.

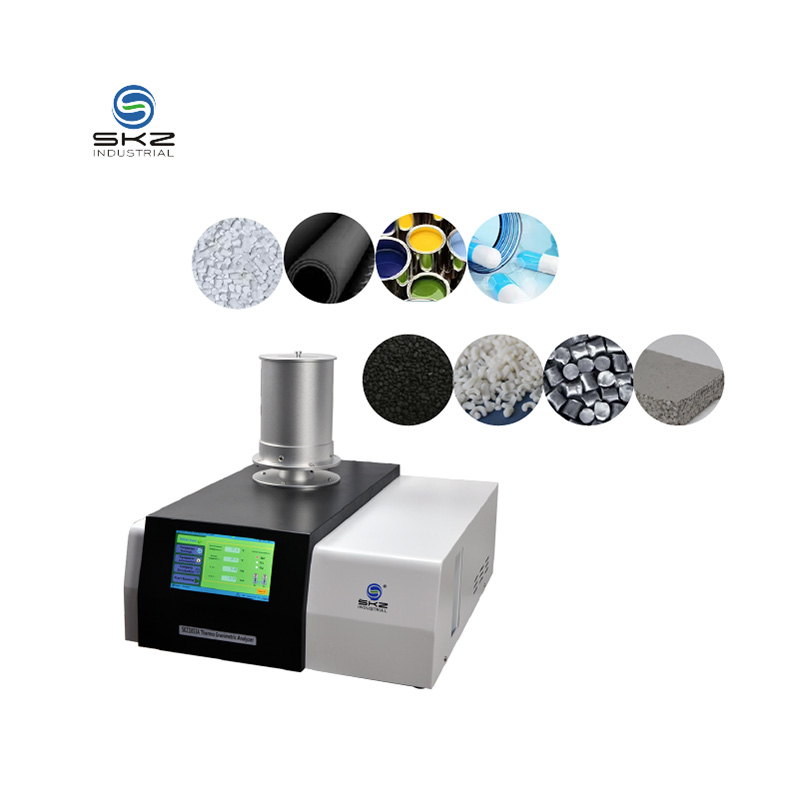

SKZ1053

Applications of Thermo Gravimetric Analyzer

Widely used in the research and development, process optimization and quality control of plastics, rubber, coatings, pharmaceuticals, catalysts, inorganic materials, metal materials and composite materials

Thermal Stability
Decomposing Process
Adsorption and Desorption
Oxidation and Reduction
Ingredients Quantitative analysis
Additives and Filler Influence
Moisture and Volatiles
Reaction Kinetics
