| Specification of SKZ68 Tri Gloss Meter | |||

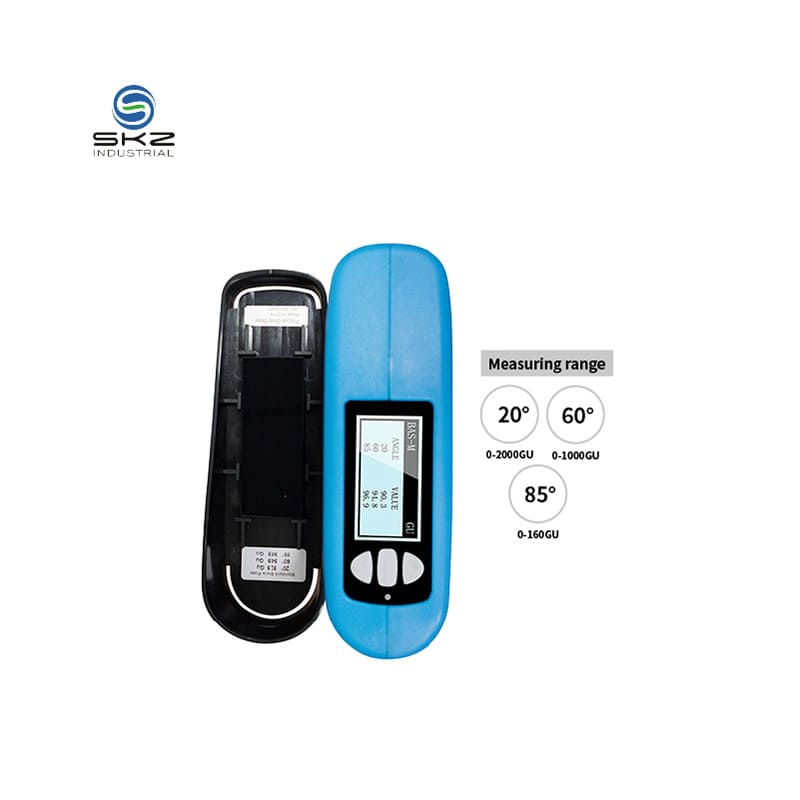

| Measuring Angle | 20°, 60°, 85° | Measuring range | 20°:0~2000 GU |
| Repeatability | 0.2GU(0~100GU) | 60:0~1000 GU | |
| 0.2%GU(>100GU) | 85°:0~160GU | ||
| Measuring Spot | 10*10mm(20°) | Indication Error | ±0.15GU |
| 9*15mm(60°) | Measurement Pattern | Manual measurement | |
| 5*18mm(85°) | Automatic measurement | ||
| Division Value | 0.1GU(0~1000GU) | Single measurement | |
| 1GU(1000~2000GU) | Average measurement | ||
| Data Interface | USB and DC ports | Data Storage | 50000(Three angle) |
| Languages | Chinese/English | Volume | 159*49*72mm |
| Weight | 500g | Power Supply | 2 # 5 alkaline batteries |
| Zero error | 0.2GU | power adapter | |
| Operating Temperature | 10-40℃ | Storage Temperature | -10-70℃ |
| Relative Humidity | <85%, without condensation | ||
IS02813, 1S07668, ASTM D523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T 8807, JG 696-2002

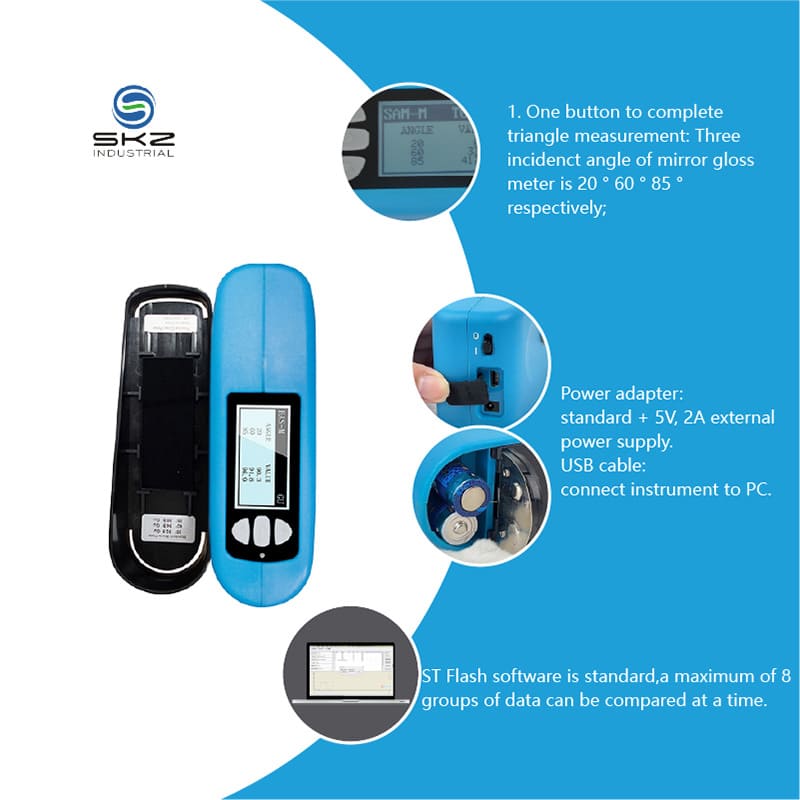

SKZ68 tri gloss measurement can complete the measurement of multiple angles with one click, and the measurement of three angles can be completed at the same time with one operation. S0 2813 provides three kinds of measuring light incident angles, the three incident angles of the mirror gloss meter are 20°, 60°, 85°.
Alibaba's top certified supplier, providing one-to-one logistics tracking reminder service.
24/7 Support
Provide air, sea and shipping services according to customer needs
Provide fumigation-free plywood boxes or multi-layer cartons, wrapped with plastic film inside
Delivery within two weeks
Low minimum order quantity OEM
SKZ68 digital gloss meter can be applicable in coatings, printing ink, paint, paint, wood, marble, granite, polishing brick, brick of pottery and porcelain, plastic, paper, metal and non-metallic materials, stoving varnish, vitrified polished tile. Measurement Range：0-2000Gu Projection Angle：60° Measuring Spot:14*61mm Measuring Mode:Automatic/ manual /single /average and combination angle Show maximum/minimum value Standard Sample Setting:Manually setting/bring out stored data for setting/manually setting tolerance Data Storage:10000 groups
