| Diffusion Gas Detector Specification Parameter | |||
| Sampling method | Diffusion type | Gas type | Single gas as requested |
| Measure range | As requested | Resolution | Depends on the gas name and measure range |
| Sensor Principle | Electrochemical principle | Response time | ≤30 seconds |
| Language | Chinese/English | Accuracy | ≤±3%FS or ±10% |
| Measure unit | PPM, mg/m3, % VOL μ Mol/mol | Battery | 3.6V dry battery |
| Alarm | sound, light, vibration alarm | Working hours | 2 years |
| Explosion-proof grade | ExiaIICT4Ga | Protection grade | IP66/IP68 |
| Working temperature | -20ºC~+55ºC | Humidity | 0~95%RH |
| Environmental pressure | 86~106Kpa | Size | 90 * 60 * 33mm |

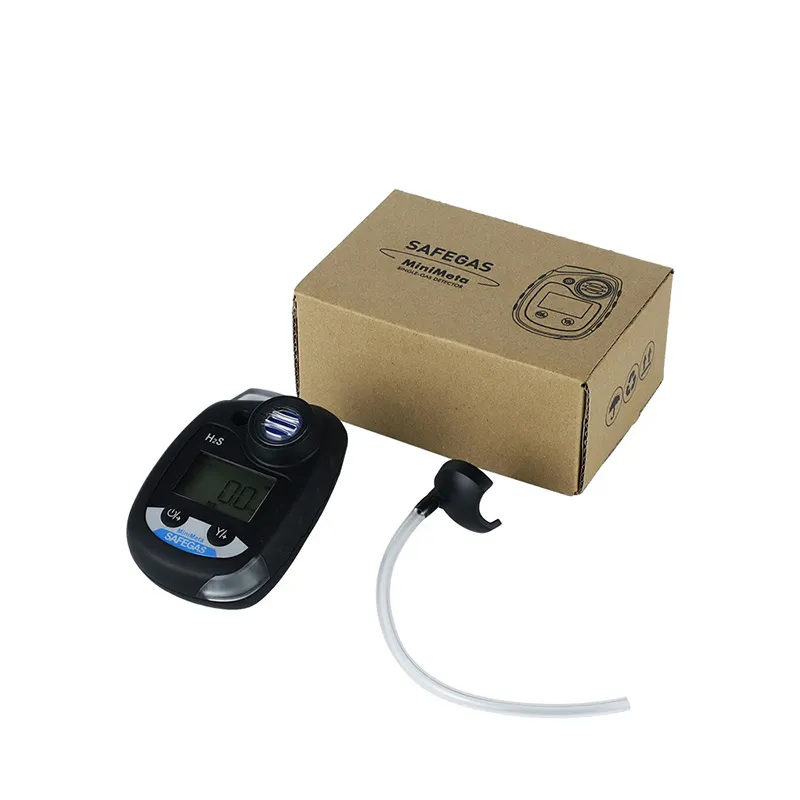

| Packing List | |
| MiniMeta Gas Detector | 1 |
| Calibration device | 1 |
| Operational manual | 1 |
| Certificate/warranty card | 1 |

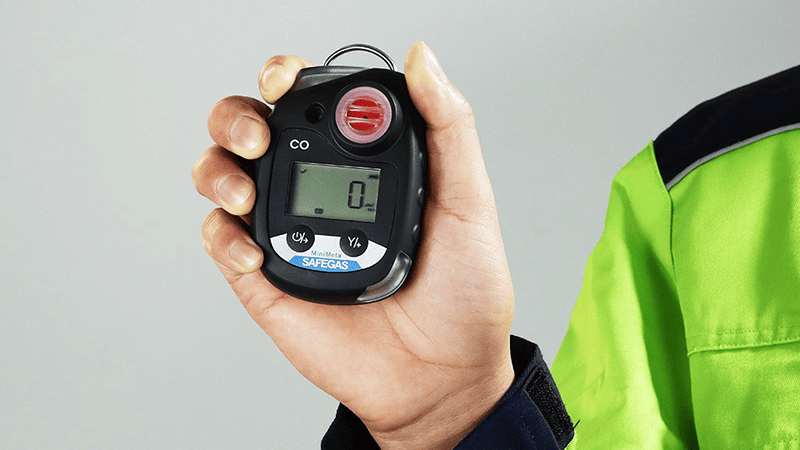

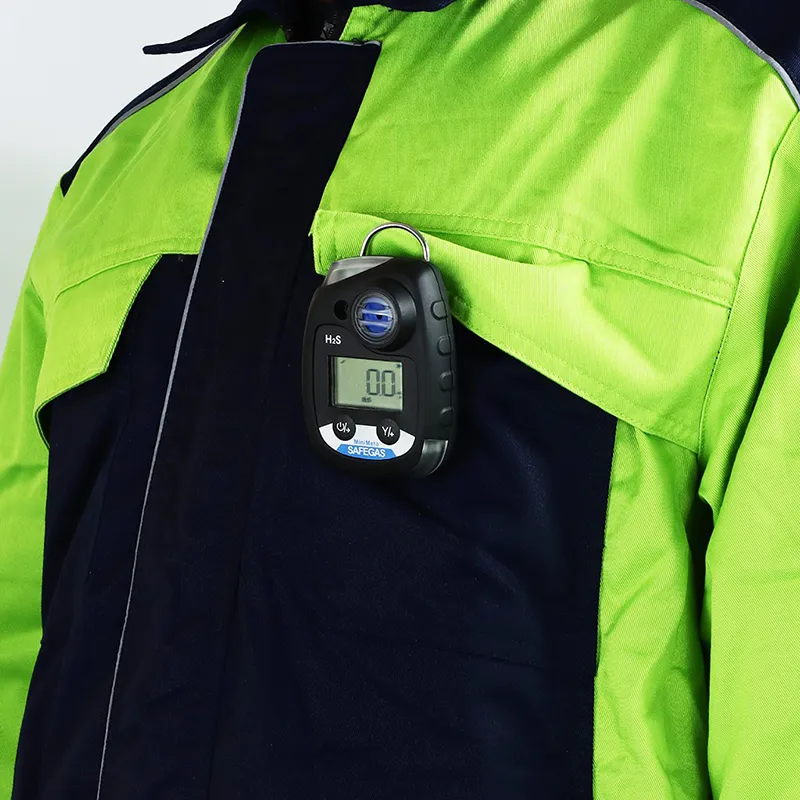

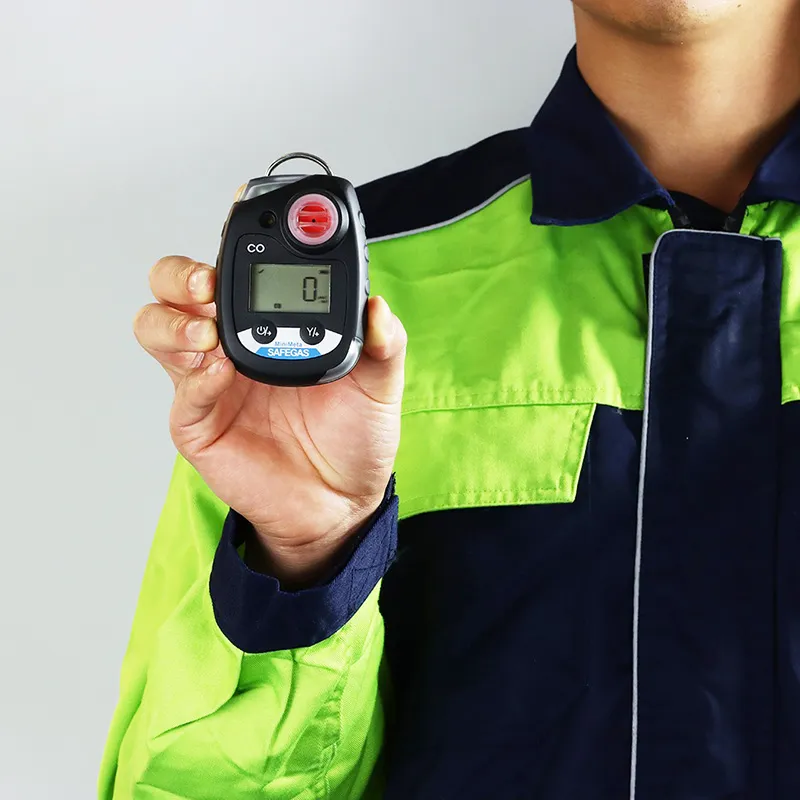

Passed IECEx, ATEX, and CNEX explosion-proof certifications, meeting the highest standards of quality and reliability, ensuring your safety and compliance. Compact, sturdy, ergonomic, and can be secured to work clothes or hats through crocodile clips, making it easy to carry.

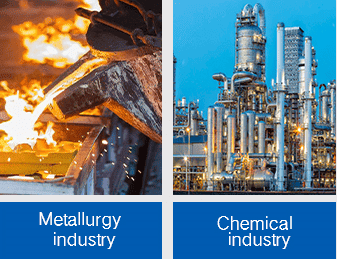

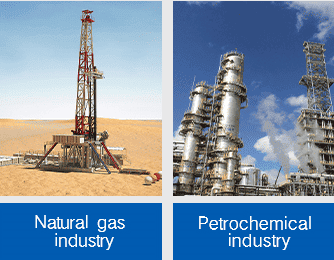

MINIMETA diffusion type gas detector can detect conventional toxic and harmful gases such as carbon monoxide, hydrogen sulfide, oxygen, and sulfur dioxide, and is widely used in industries such as petroleum and petrochemical, metallurgy, and chemical engineering for personnel protection and gas detection.
Alibaba's top certified supplier, providing one-to-one logistics tracking reminder service.
24/7 Support
Provide air, sea and shipping services according to customer needs
Provide fumigation-free plywood boxes or multi-layer cartons, wrapped with plastic film inside
Delivery within two weeks
Low minimum order quantity OEM
