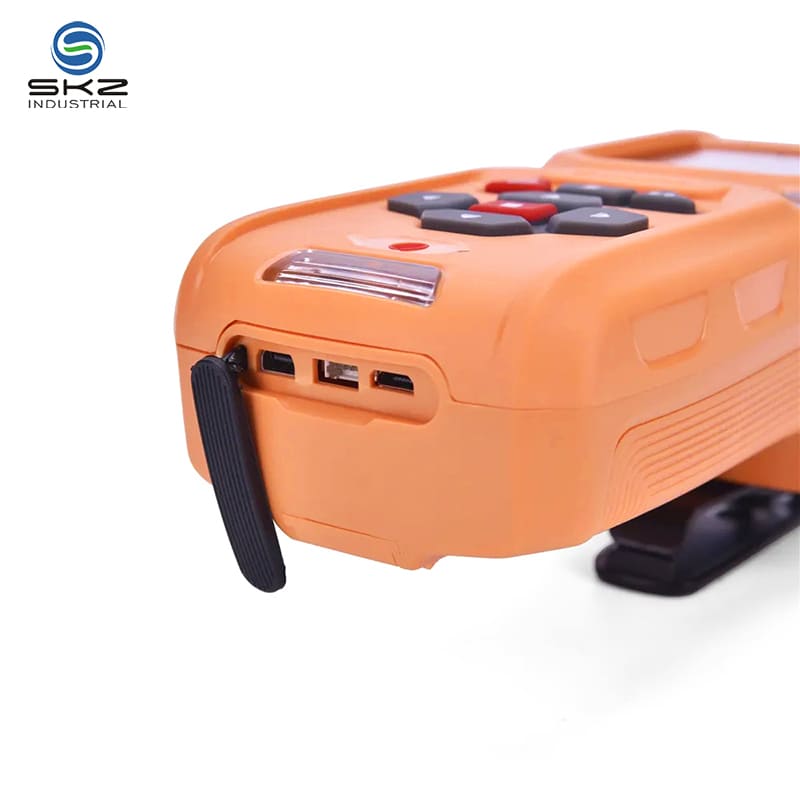

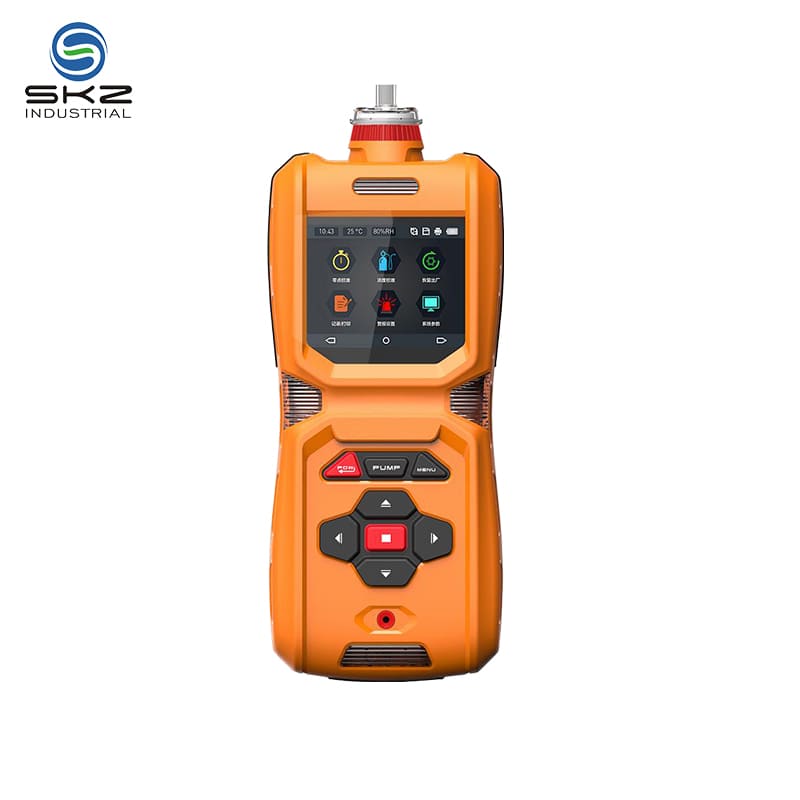

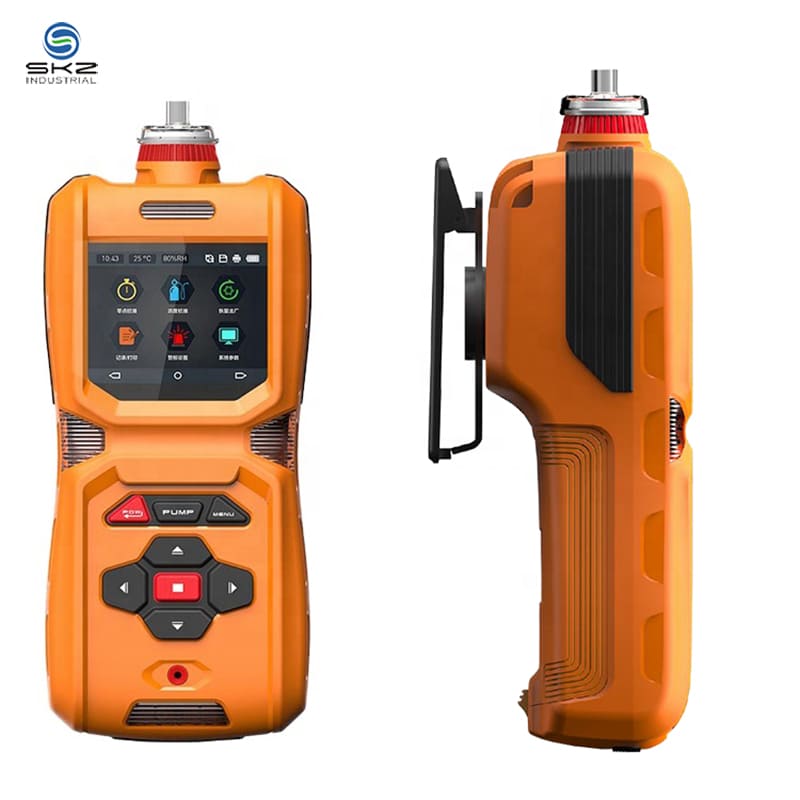

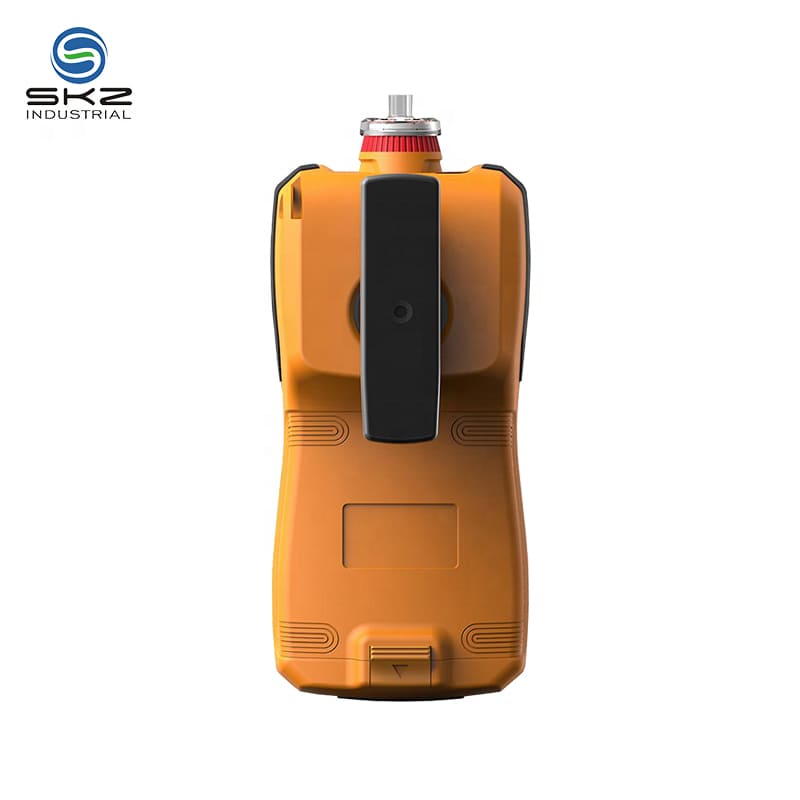

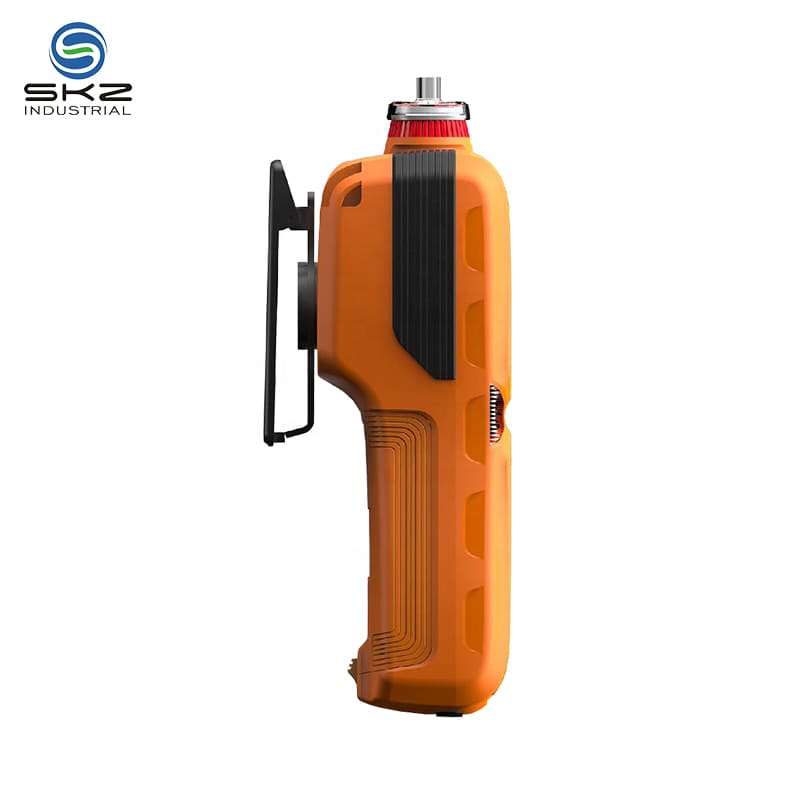

SKZ2050-6 industrial gas detection adopts 2.5-inch high-definition color screen for real-time display, and adopts gas sensors of well-known brands in the industry.
| Detection gas | Single or multiple as requested | Scope of detection | As requested |
| Resolution | As requested | Detection principle | Depends on the gas type and measure range |
| Detection method | Built-in pump suction, flow rate 500ml/min | Detection accuracy | ≤±1%F.S |
| Linearity | ≤±1% | Repeatability | ≤±1% |
| Response time | ≤20S | Power supply | DC3.6V |
| Recovery Time | ≤30S | ||
| battery capacity | 3.6VDC, 6000mA large-capacity rechargeable polymer battery | ||
| Use environment | Temperature -20℃~+50℃; Relative humidity ≤0-99%RH (built-in filter can be used in high humidity or high dust environment) | ||
| Sample temperature | -20℃~+50℃ | Temperature measurement | -20℃~+120℃ Accuracy: 0.3℃ |
| data storage | Standard configuration of 100,000 data | Humidity measurement | 0-100%RH, Accuracy 3%RH |
| Communication Interface | USB (charging and communication), RS232, infrared communication, automatic identification | ||
| Printer | Optional extra charge external mini wireless infrared thermal printer | ||
| Interface language | Chinese or English can be set | Explosion-proof type | Intrinsic safe |
| Protection level | IP67 | Explosion-proof mark | ExdⅡCT6 |
| Dimensions | 180×78×33mm(L×W×H) | Weight | 350g |
SKZ2050-6 multi gas detector is used to quickly detect the concentration of various gases and the measurement of ambient temperature and humidity, and alarm if the measurement exceeds the limit.

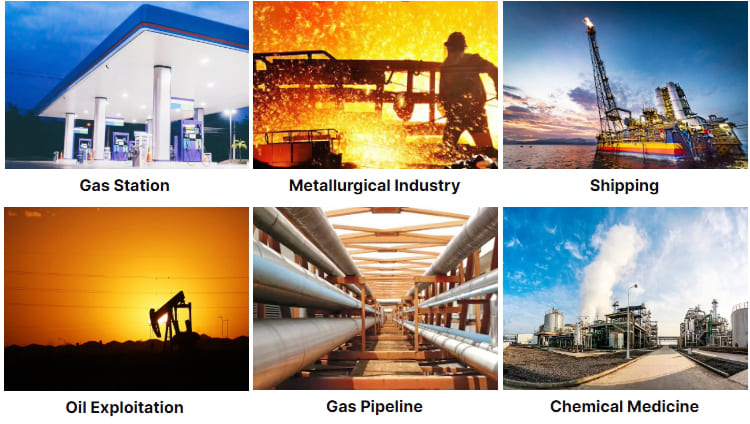

It is suitable for detecting gas concentration in pipelines or confined spaces and atmospheric environments; gas leakage or high concentration single gas purity where various background gases are nitrogen or oxygen. There are more than 500 kinds of detected gases.
Shipment
1000
Provide air, sea and shipping services according to customer needs
Provide fumigation-free plywood boxes or multi-layer cartons, wrapped with plastic film inside
Delivery within two weeks
Low minimum order quantity OEM
